Kubota Tractor Modifications

Projects include: hitch, light bar, front receiver, brush mower wheels,throttle lever housing.

Future Project: Mechanical Backhoe Thumb

img_1567

3 Point Hitch Receiver

img_7837

img_7839

Screen Shot 2017-06-06 at 9.03.09 PM

Front Bucket Receiver

img_6272

Throttle Pivot

In 2014, the aluminum casting which holds the base of the BX24 throttle lever broke off. The engine could not be revved up and at 980 RPM, the tractor is as good as turned off.

I looked at the aluminum casting. It would be a nightmare to get off- the entire body , the front axle driveshaft, and the radiator all needed to come off. After removing everything, a simple, cheap and fast solution dawned on me. I could make a new bracket to fix the problem.

The (unnecessary) TeardownIMG_4571

Bracket I fabricated out of scrap steelIMG_4597

Mounting the bracket. Note the black throttle lever. IMG_4596

Video of operation!



Maintenance Mishap

I am responsible for maintaining all of the equipment. 400 hours on a Kubota L3540 marks a major service- hydrostatic fluid, engine oil, front axle oil, and fuel filter.

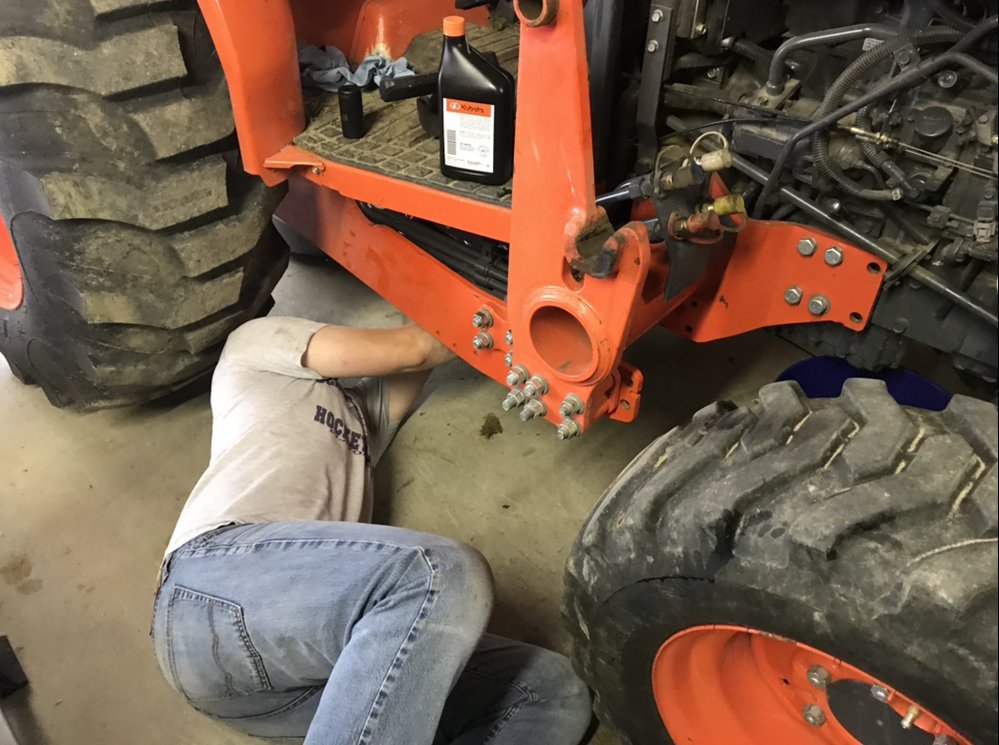

Changing hydro filters

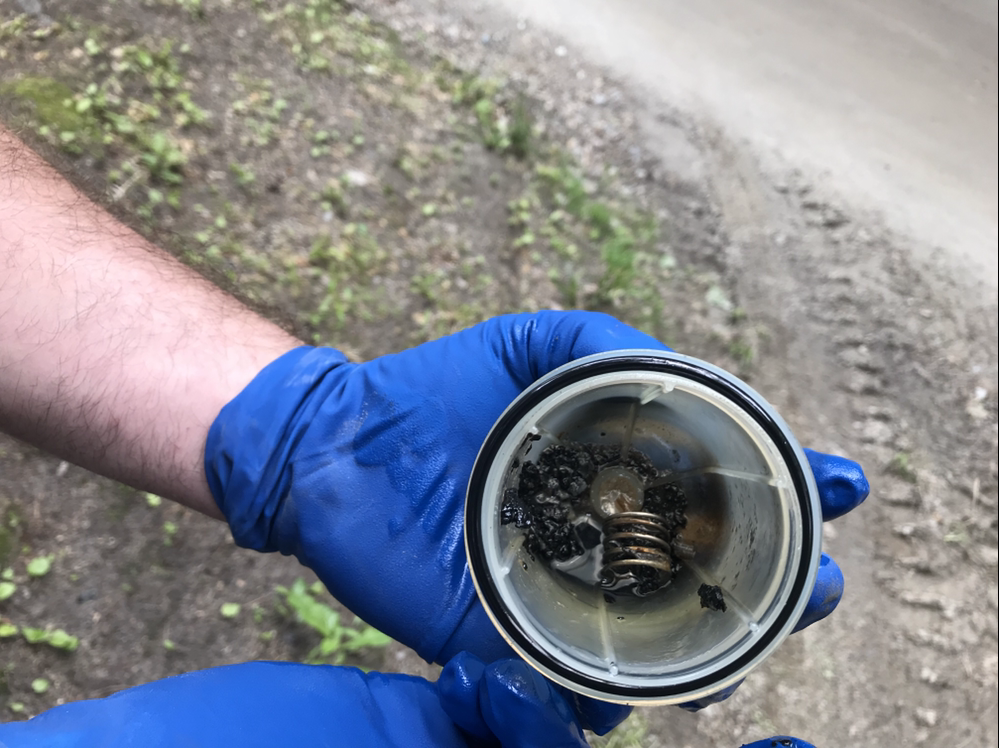

I’ve never seen a fuel filter/bowl with rocks in it!

After completing the service, I pulled the tractor out of the garage and it died. I starved it of fuel. It shouldn’t have been a big deal to get started again, right?

Well, it turned into a nightmare. I worked until dark and my neighbor came over to help, too. Turns out the fuel pump didn’t have enough power to self prime so the diesel never made it to the injector rail. I had swallow my pride and haul it to a dealer for help.

Working with my neighbor- we blew compressed air into the tank trying to pressurize the fuel system

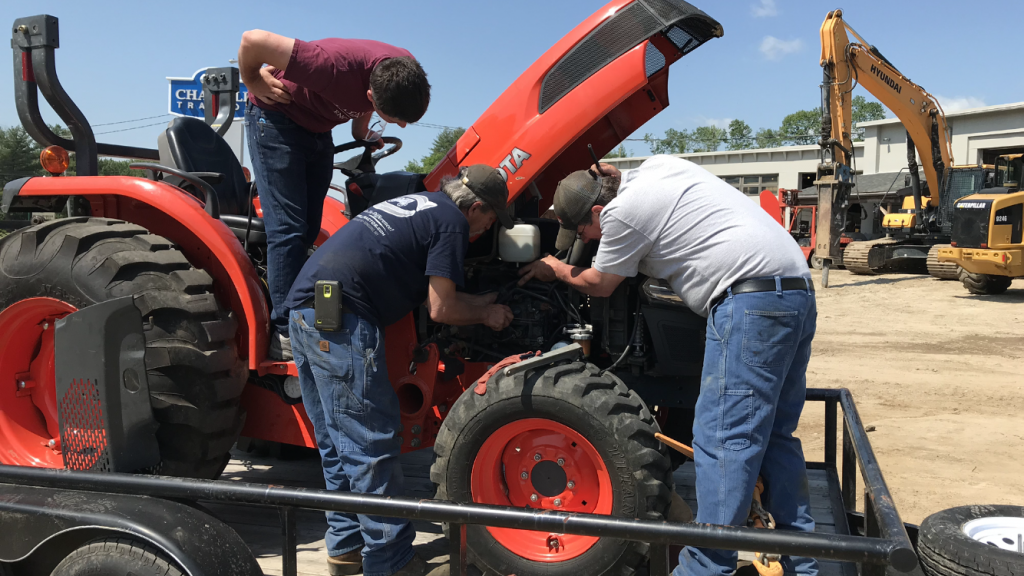

Working with the mechanics at the dealership – it took them an hour to get it going so I felt a little bit better

It turns out this is a common problem with Kubota tractors if you starve them of fuel. I frequent Kubota forums and I’ve helped a few people through this very issue.
